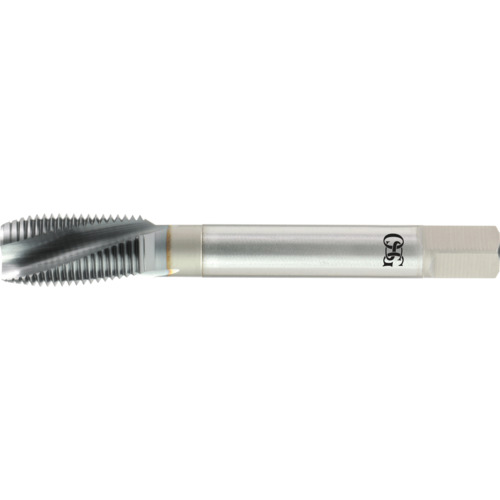

2-56 3 Fl H2 VC-10 Spiral Point Tap- V Coating
Spiral Point Tap; #2 - 56 ; 1-3/4″ OAL ; 3 FL ; HSS-PM ; TiCN ; H2 ; Series 13063
| Thread Standard | NC | Tool Type | Spiral Point Tap |
| Thread Size | #2 - 56 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | #2 | Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Threads per Inch (TPI) | 56 | Thread Cutting Part Length (THL) | 7/16″ |
| Thread Tolerance Class (TCTR) | H2 | Flute Type | Straight |
| Usable Length (LU) | 0.476″ | End Shape | Spiral Point | Chamfer |
| Overall Length (OAL) | 1-3/4″ | Style | Spiral Point |
| Chamfer | 4P-4.5P | Cutting Direction (HAND) | Left Hand |
| Coating | TiCN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Measurement Type | Wire Gauge |
| Cutting Edge Material | HSS-PM | Series/List # | 13063 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.01
