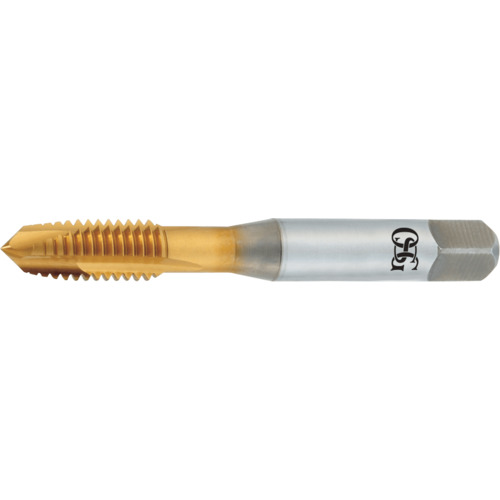

10-32 3FL H5 HSSE Spiral Point Tap - TiN
Spiral Point Tap; #10 - 32 ; 2-3/8″ OAL ; 3 FL ; HSSCo ; TiN ; H5 ; Series 320
| Thread Standard | NF | Cutting Edge Material | HSSCo |
| Thread Size | #10 - 32 | Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | #10 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 32 | Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Thread Tolerance Class (TCTR) | H5 | Thread Cutting Part Length (THL) | 7/8″ |
| Usable Length (LU) | 0.866″ | End Shape | Spiral Point |
| Overall Length (OAL) | 2-3/8″ | Style | Plug |
| Chamfer | 4P-4.5P | Measurement Type | Wire Gauge |
| Coating | TiN | Series/List # | 320 |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.30000
Package Weight
0.025
