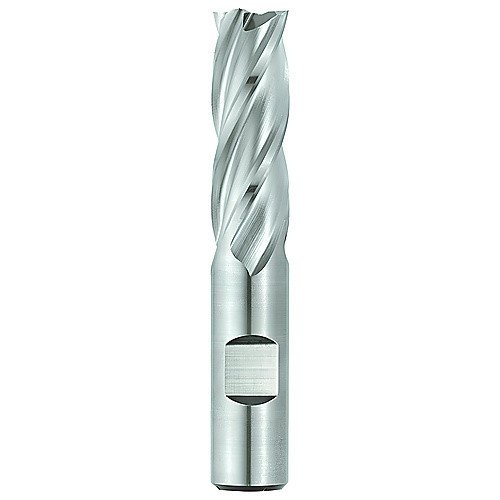

SPC408-1.000-D3-S.3-Z4 TICN
SQ End Mill; 1″ Dia. × 3″ LOC × 1″ Shank Dia. × 5-1/2″ OAL ; 4 FL ; HSSCo ; TiCN
| Cutting Diameter (DC) | 1″ | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 1″ | Flute Helix Angle (FHA) | 30 Degrees |
| Depth of Cut Maximum (APMX) | 3″ | Shank Type | Weldon |
| Overall Length (OAL) | 5-1/2″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Cutting Edge Material | HSSCo | Tool Type | Center Cut |
| Coating | TiCN | Decimal Equivalent | 1″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.01
