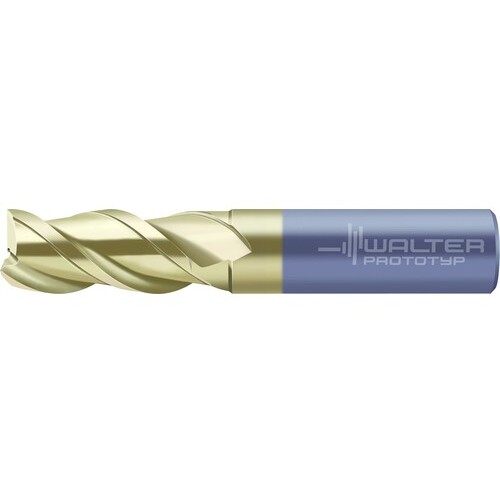

2mm Dia. × 5mm LOC 3 Flute Carbide TAZ .08mm CR En
SQ End Mill; 2 mm Dia. × 5 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 0.08 mm RE ; 3″ FL ; 7.5 mm LBS ; Carbide ; AlTiN + ZrN ; Series H4036217
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 2 mm | Flute Helix Angle (FHA) | CW|45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 5 mm | End Shape | Corner Radius |
| Overall Length (OAL) | 57 mm | Usable Length (LU) | 7.5 mm |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 0.08 mm |
| Coating | AlTiN + ZrN | Decimal Equivalent | 0.0787″ |
| Flute Count (NOF) | 3″ | Series/List # | H4036217 |
Product Features
| Family Description | H4036217–2 | Country of Origin | Germany |
Shipping Info
Package Weight
0.055
