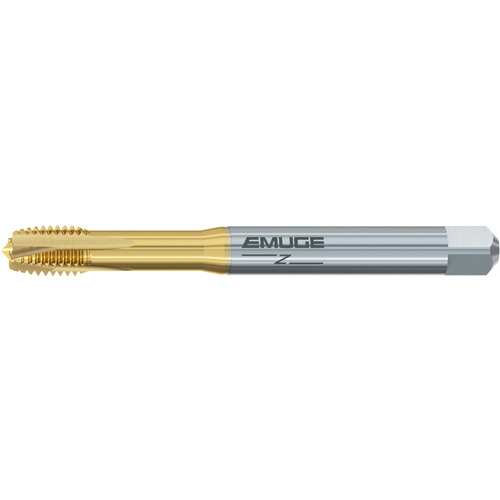

Spiral Point Tap; M2.5 x0.45 mm × 50 mm OAL ; HSSE PM ; TiN ; Metric ; 6HX ; Series 0208F01
| Thread Standard | Metric | Standard | DIN |
| Thread Size | M2.5 × 0.45 | Tool Type | Rekord B-Z |
| Thread Diameter Size (TDZ) | M2.5 | Applicable Material | | Steel | Stainless Steel | |
| Thread Pitch (TP) | 0.45 mm | Application | Blind Hole |
| Thread Tolerance Class (TCTR) | 6HX | Connection Diameter Machine Side (DCONMS) | 2.8 mm |
| Overall Length (OAL) | 50 mm | Style | Spiral Point |
| Chamfer | 4P-5P | Cutting Direction (HAND) | Right Hand |
| Coating | TiN | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE-PM | Series/List # | B0208F01 |
Product Features
| Remarks | • Rekord B-Z design is typically for through hole applications in long-chipping materials. • Spiral Point creates tight curled chips that are pushed ahead of the tap. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
