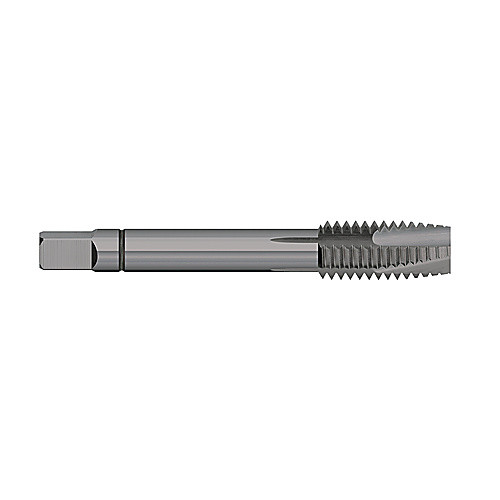

771 7/16-14 H5 3F SP/PT P
Spiral Point Tap; 7/16″ - 14 ; 3-5/32″ OAL ; 3 FL ; HSS ; Black Oxide ; H5
| Thread Standard | UN | Flute Count (NOF) | 3 |
| Thread Size | 7/16″ - 14 | Cutting Edge Material | HSS |
| Thread Diameter Size (TDZ) | 7/16″ | Standard | ANSI |
| Threads per Inch (TPI) | 14 | Tool Type | High Performance Tap |
| Thread Tolerance Class (TCTR) | H5 | Special Feature | High Performance |
| Usable Length (LU) | 0.95″ | Connection Diameter Machine Side (DCONMS) | 0.323″ |
| Overall Length (OAL) | 3-5/32″ | Thread Cutting Part Length (THL) | 0.95″ |
| Chamfer | Plug | Measurement Type | Inch |
| Coating | Black Oxide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.075
