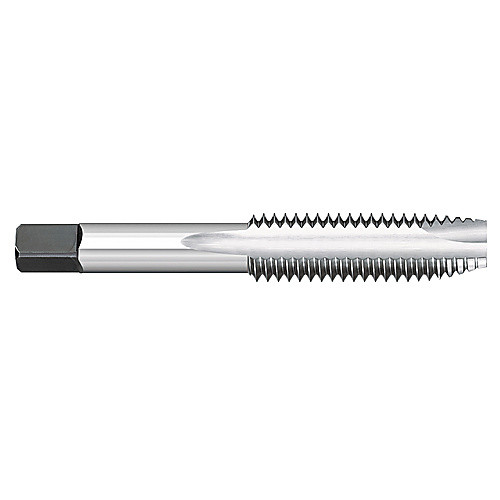

750 1/2-13 H5 3F PL SP PT
Spiral Point Tap; 1/2″ - 13 ; 3-3/8″ OAL ; 3 FL ; HSS ; Uncoated ; H5
| Thread Standard | UN | Flute Count (NOF) | 3 |
| Thread Size | 1/2″ - 13 | Cutting Edge Material | HSS |
| Thread Diameter Size (TDZ) | 1/2″ | Standard | ANSI |
| Threads per Inch (TPI) | 13 | Tool Type | General Purpose Tap |
| Thread Tolerance Class (TCTR) | H5 | Special Feature | General Purpose |
| Usable Length (LU) | 1-21/32″ | Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Overall Length (OAL) | 3-3/8″ | Thread Cutting Part Length (THL) | 1-21/32″ |
| Chamfer | Plug | Measurement Type | Inch |
| Coating | Uncoated |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.107
