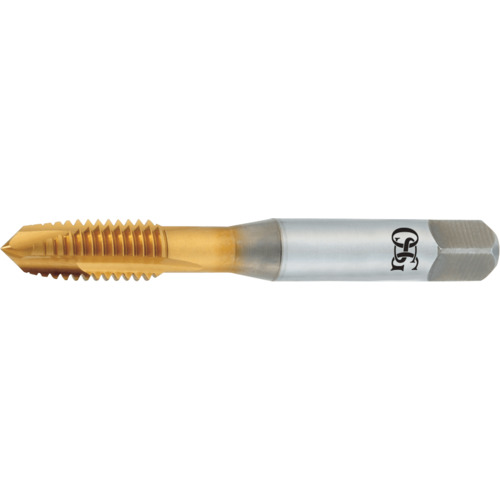

6-32 Dia-H3-2 FL-HSS-TiN-Plug Spiral Point Tap
Spiral Point Tap; #6 - 32 ; 2″ OAL ; 2 FL ; HSS ; TiN ; H3 ; Series 320
| Thread Standard | NC | Cutting Edge Material | HSS |
| Thread Size | #6 - 32 | Tool Type | High Performance Tap |
| Thread Diameter Size (TDZ) | #6 | Applicable Material | | Hard Materials | |
| Threads per Inch (TPI) | 32 | Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Thread Tolerance Class (TCTR) | H3 | Thread Cutting Part Length (THL) | 11/16″ |
| Usable Length (LU) | 0.685″ | End Shape | Spiral Point |
| Overall Length (OAL) | 2″ | Style | Plug |
| Chamfer | 4P-4.5P | Measurement Type | Wire Gauge |
| Coating | TiN | Series/List # | 320 |
| Flute Count (NOF) | 2 |
Product Features
| Remarks | •EXOTIN Spiral Point Plug Style •Designed for tough-to-machine steels •TiN Coated Only •1050, 1065 High carbon steel •300, 400 & 17–4ph Stainless steel •Hardened steel up to 35 HRC | Country of Origin | Mexico |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.35000
Package Weight
0.015
