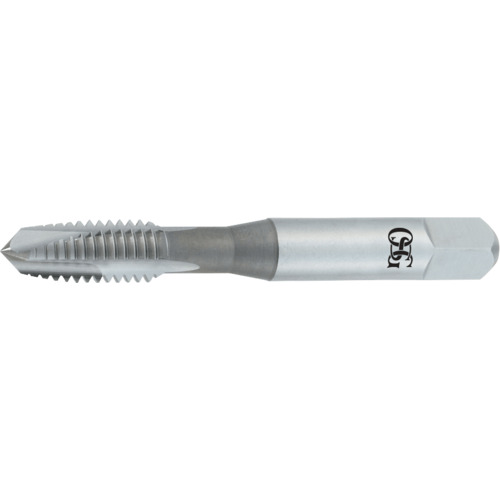

M12 1.75 Dia-6H-3 FL-HSS-Bright-Plug Spiral Point Tap
Spiral Point Tap; M12 × 1.75 mm ; 3-3/8″ OAL ; 3 FL ; HSS ; Uncoated ; 6H Thread Limit ; Series 288
| Thread Standard | Metric | Cutting Edge Material | HSS |
| Thread Size | M12 × 1.75 | Tool Type | High Performance Tap |
| Thread Diameter Size (TDZ) | M12 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Pitch (TP) | 1.75 mm | Connection Diameter Machine Side (DCONMS) | 9.32 mm |
| Thread Tolerance Class (TCTR) | 6H Thread Limit | Thread Cutting Part Length (THL) | 1-21/32″ |
| Usable Length (LU) | 35 mm | End Shape | Spiral Point |
| Overall Length (OAL) | 3-3/8″ | Style | Plug |
| Chamfer | 4P-4.5P | Measurement Type | Metric |
| Coating | Uncoated | Series/List # | 288 |
| Flute Count (NOF) | 3 |
Product Features
| Remarks | •Seven Taps •Spiral Point Plug Taps •Bright Finish •Designed for tapping aluminum, mild steels and medium carbon steels •Short thread geometry for class 2B & 3B fit •Results in highest fast speed tapping & max tool life | Country of Origin | Mexico |
Shipping Info
Package Length
5.00000
Package Width
.75000
Package Height
.70000
Package Weight
0.115
