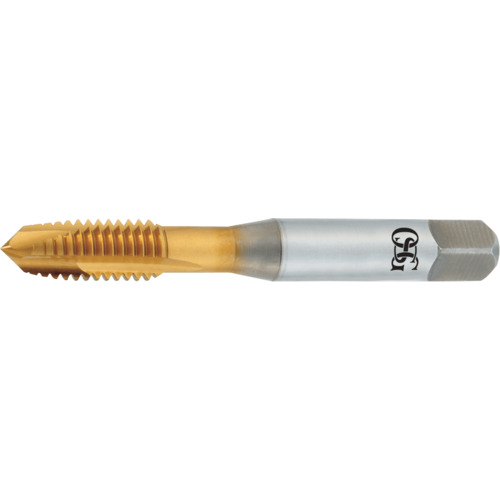

3/4-10 Dia-H3-3 FL-HSS-TiN-Plug Spiral Point Tap
Spiral Point Tap; 3/4″ - 10 ; 4-1/4″ OAL ; 3 FL ; HSS ; TiN ; H3 ; Series 320
| Thread Standard | NC | Cutting Edge Material | HSS |
| Thread Size | 3/4″ - 10 | Tool Type | High Performance Tap |
| Thread Diameter Size (TDZ) | 3/4″ | Applicable Material | | Hard Materials | |
| Threads per Inch (TPI) | 10 | Connection Diameter Machine Side (DCONMS) | 0.59″ |
| Thread Tolerance Class (TCTR) | H3 | Thread Cutting Part Length (THL) | 2″ |
| Usable Length (LU) | 1.713″ | End Shape | Spiral Point |
| Overall Length (OAL) | 4-1/4″ | Style | Plug |
| Chamfer | 4P-4.5P | Measurement Type | Inch |
| Coating | TiN | Series/List # | 320 |
| Flute Count (NOF) | 3 |
Product Features
| Remarks | •EXOTIN Spiral Point Plug Style •Designed for tough-to-machine steels •TiN Coated Only •1050, 1065 High carbon steel •300, 400 & 17–4ph Stainless steel •Hardened steel up to 35 HRC | Country of Origin | Mexico |
Shipping Info
Package Length
4.35000
Package Width
1.00000
Package Height
.90000
Package Weight
0.32
