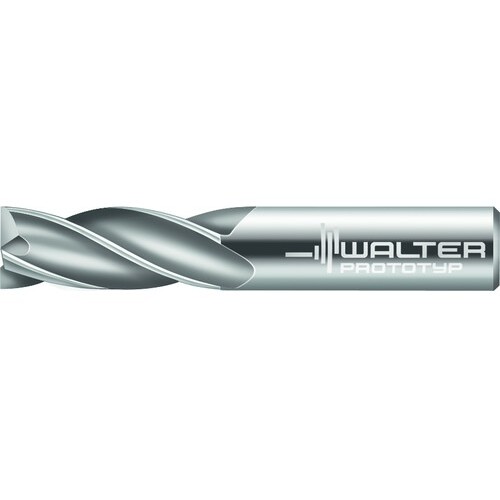

9mm Dia. × 19mm LOC 4 Flute Carbide 30° Helix End
SQ End Mill; 9 mm Dia. × 19 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 4 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 9 mm | Coating | Uncoated |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 19 mm | Flute Helix Angle (FHA) | CW|30 Degrees |
| Overall Length (OAL) | 72 mm | Shank Type | Round |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.3543″ |
Product Features
| Family Description | H302211–9 | Country of Origin | Germany |
Shipping Info
Package Weight
0.166
