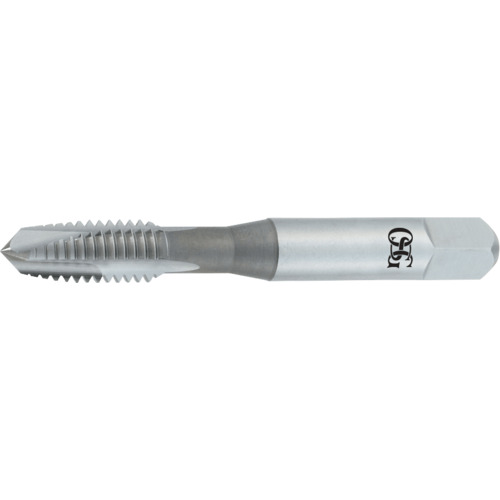

3-56 2FL 2B High Speed Steel Spiral Point Tap - Bright
Spiral Point Tap; #3 - 56 ; 1-13/16″ OAL ; 2 FL ; HSS ; Uncoated ; 2B ; Series 288
| Thread Standard | NF | Cutting Edge Material | HSS |
| Thread Size | #3 - 56 | Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | #3 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 56 | Connection Diameter Machine Side (DCONMS) | 0.14″ |
| Thread Tolerance Class (TCTR) | 2B | Thread Cutting Part Length (THL) | 1/2″ |
| Usable Length (LU) | 0.496″ | End Shape | Spiral Point |
| Overall Length (OAL) | 1-13/16″ | Style | Plug |
| Chamfer | 4P-4.5P | Measurement Type | Wire Gauge |
| Coating | Uncoated | Series/List # | 288 |
| Flute Count (NOF) | 2 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
2.40000
Package Width
.45000
Package Height
.35000
Package Weight
0.005
