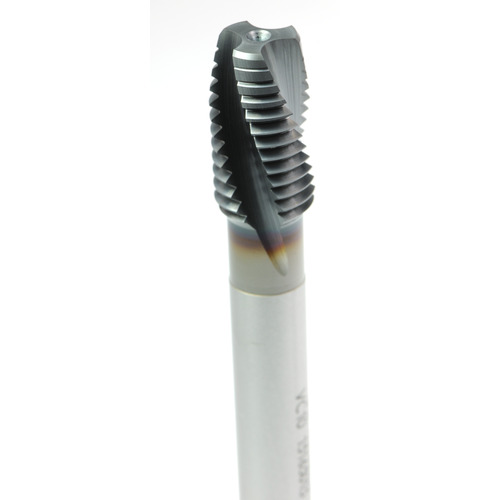

M10x1.25 3 Fl D5 VC-10 Spiral Point Tap- V Coating
Spiral Point Tap; M10 × 1.25 mm ; 2-15/16″ OAL ; 3 FL ; HSS-PM ; TiCN ; D5 ; Series 13163
| Thread Standard | Metric | Cutting Edge Material | HSS-PM |
| Thread Size | M10 × 1.25 | Tool Type | Spiral Point Tap |
| Thread Diameter Size (TDZ) | M10 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Pitch (TP) | 1.25 mm | Connection Diameter Machine Side (DCONMS) | 9.67 mm |
| Thread Tolerance Class (TCTR) | D5 | Thread Cutting Part Length (THL) | 1-1/4″ |
| Usable Length (LU) | 32 mm | End Shape | Chamfer |
| Overall Length (OAL) | 2-15/16″ | Style | Spiral Point |
| Chamfer | 4P-4.5P | Coolant Supply Property (CSP) | External |
| Coating | TiCN | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | 13163 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.65000
Package Width
.60000
Package Height
.60000
Package Weight
.0800
