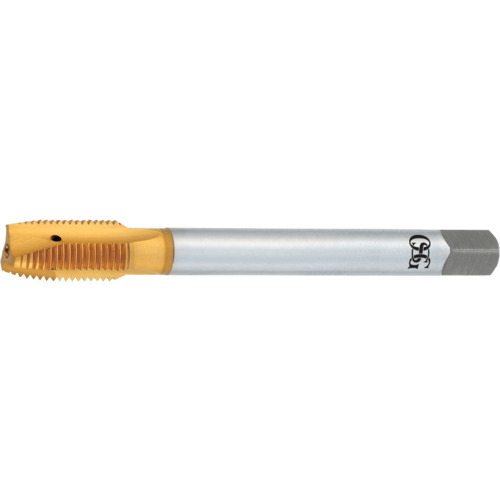

3/8-16 2B 3FL TIN SP PT
Spiral Point Tap; 3/8″ - 16 ; 100 mm OAL ; 3 FL ; HSS ; TiN ; 2B ; Series 260
| Thread Standard | NC | Tool Type | High Performance Tap |
| Thread Size | 3/8″ - 16 | Special Feature | DIN Length |
| Thread Diameter Size (TDZ) | 3/8″ | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 16 | Connection Diameter Machine Side (DCONMS) | 0.38″ |
| Thread Tolerance Class (TCTR) | 2B | Thread Cutting Part Length (THL) | 1-1/4″ |
| Usable Length (LU) | 1.377″ | End Shape | Spiral Point |
| Overall Length (OAL) | 100 mm | Style | Plug |
| Chamfer | 4P-4.5P | Coolant Supply Property (CSP) | Coolant Thru |
| Coating | TiN | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 260 |
| Cutting Edge Material | HSS |
Product Features
| Remarks | •HY-PRO DIN Spiral Point Taps •Designed for tapping hardened steel such as 4140, 4340, H–13, D–2 and 1055 up to 35 HRC as well as a variety of stainless steel. TiN surface treatment and coolant through capability enables high speed tapping. Recommended for use with a synchronized spindle. •Plug Style •Coolant thru •DIN Overall length | Country of Origin | Japan |
Shipping Info
Package Length
4.45000
Package Width
.60000
Package Height
.55000
Package Weight
0.108
