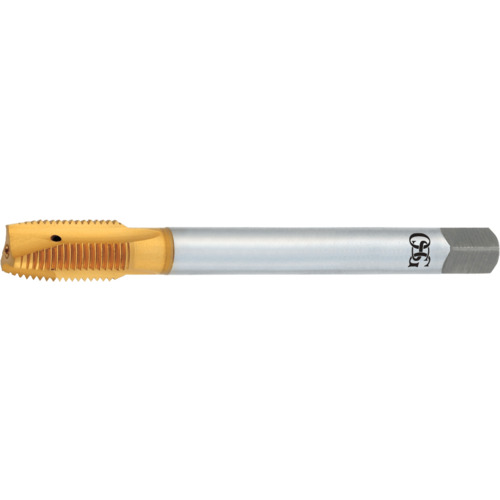

M18 1.5 Dia-6H-3 FL-HSS-TiN-Plug Spiral Point Tap
Spiral Point Tap; M18 × 1.5 mm ; 110 mm OAL ; 3 FL ; HSS ; TiN ; 6H ; Series 269
| Thread Standard | Metric | Tool Type | High Performance Tap |
| Thread Size | M18 × 1.5 | Special Feature | DIN Length |
| Thread Diameter Size (TDZ) | M18 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Pitch (TP) | 1.5 mm | Connection Diameter Machine Side (DCONMS) | 13.76 mm |
| Thread Tolerance Class (TCTR) | 6H | Thread Cutting Part Length (THL) | 1-13/16″ |
| Usable Length (LU) | 43 mm | End Shape | Spiral Point |
| Overall Length (OAL) | 110 mm | Style | Plug |
| Chamfer | 4P-4.5P | Coolant Supply Property (CSP) | Coolant Thru |
| Coating | TiN | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | 269 |
| Cutting Edge Material | HSS |
Product Features
| Remarks | •HY-PRO DIN Spiral Point Taps •Designed for tapping hardened steel such as 4140, 4340, H–13, D–2 and 1055 up to 35 HRC as well as a variety of stainless steel. TiN surface treatment and coolant through capability enables high speed tapping. Recommended for use with a synchronized spindle. •Plug Style •Coolant thru •DIN Overall length | Country of Origin | Japan |
Shipping Info
Package Length
4.45000
Package Width
.95000
Package Height
.80000
Package Weight
0.27
