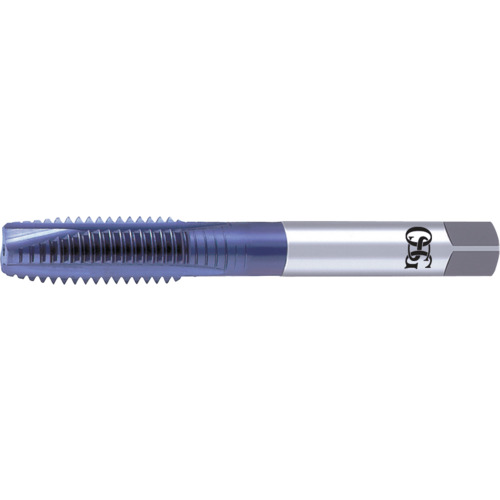

3/4-16 Dia. - H3-4 FL - VC10 - TiCN - Plug - Spiral Point Tap
Spiral Point Tap; 3/4″ - 16 ; 4-1/4″ OAL ; 4 FL ; HSS-PM ; TiCN ; H3 ; Series 312TI
| Thread Standard | NF | Cutting Edge Material | HSS-PM |
| Thread Size | 3/4″ - 16 | Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | 3/4″ | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 16 | Connection Diameter Machine Side (DCONMS) | 0.59″ |
| Thread Tolerance Class (TCTR) | H3 | Thread Cutting Part Length (THL) | 2″ |
| Usable Length (LU) | 1.712″ | End Shape | Spiral Point |
| Overall Length (OAL) | 4-1/4″ | Style | Plug |
| Chamfer | 4P-4.5P | Measurement Type | Inch |
| Coating | TiCN | Series/List # | 312TI |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
4.35000
Package Width
1.00000
Package Height
.90000
Package Weight
.3350
