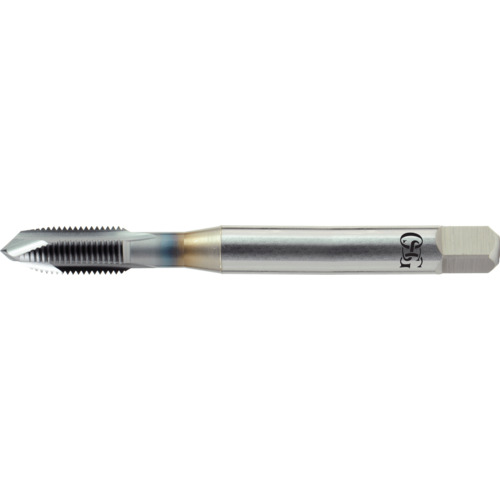

8-32 H3 3FL PLUG DIN TICN SP PT TAP
Spiral Point Tap; #8 - 32 ; 63 mm OAL ; 3 FL ; HSSCo ; TiCN ; H3 ; Series 11017
| Thread Standard | NC | Cutting Edge Material | HSSCo |
| Thread Size | #8 - 32 | Standard | DIN |
| Thread Diameter Size (TDZ) | #8 | Tool Type | Hand Tap |
| Threads per Inch (TPI) | 32 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Tolerance Class (TCTR) | H3 | Connection Diameter Machine Side (DCONMS) | 0.168″ |
| Usable Length (LU) | 0.835″ | Thread Cutting Part Length (THL) | 3/4″ |
| Overall Length (OAL) | 63 mm | End Shape | Spiral Point |
| Chamfer | 3.5P-4.5P | Style | Plug |
| Coating | TiCN | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 3 | Series/List # | 11017 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.35000
Package Weight
0.015
