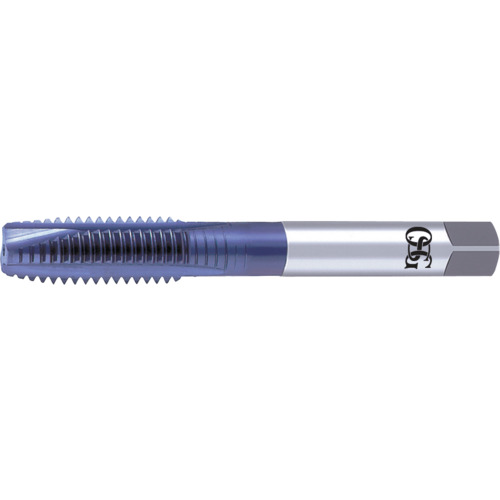

3/8-24 Dia. - H4-3 FL - VC10 - TiCN - Plug - Spiral Point Tap
Spiral Point Tap; 3/8″ - 24 ; 2-15/16″ OAL ; 3 FL ; HSS-PM ; TiCN ; H4 ; Series 312TI
| Thread Standard | NF | Cutting Edge Material | HSS-PM |
| Thread Size | 3/8″ - 24 | Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | 3/8″ | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 24 | Connection Diameter Machine Side (DCONMS) | 0.38″ |
| Thread Tolerance Class (TCTR) | H4 | Thread Cutting Part Length (THL) | 1-1/4″ |
| Usable Length (LU) | 1.24″ | End Shape | Spiral Point |
| Overall Length (OAL) | 2-15/16″ | Style | Plug |
| Chamfer | 4P-4.5P | Measurement Type | Inch |
| Coating | TiCN | Series/List # | 312TI |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.65000
Package Width
.55000
Package Height
.55000
Package Weight
.0850
