7/16-20 H3 3FL PLUG DIN TICN SP PT

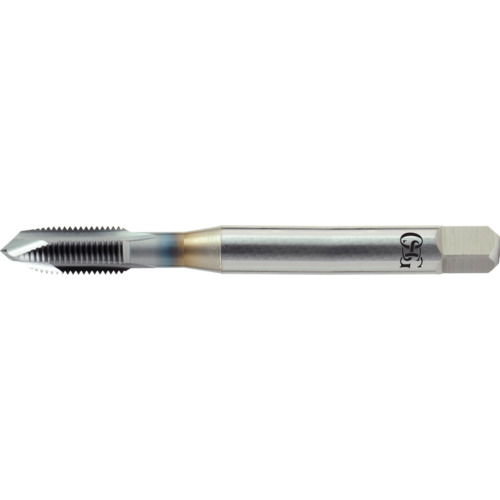

Spiral Point Tap; 7/16″ - 20 ; 100 mm OAL ; 3 FL ; HSSCo ; TiCN ; H3 ; Series 11017
| Thread Standard | NF | Cutting Edge Material | HSSCo |
| Thread Size | 7/16″ - 20 | Standard | DIN |
| Thread Diameter Size (TDZ) | 7/16″ | Tool Type | Hand Tap |
| Threads per Inch (TPI) | 20 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Tolerance Class (TCTR) | H3 | Connection Diameter Machine Side (DCONMS) | 0.323″ |
| Usable Length (LU) | 1.291″ | Thread Cutting Part Length (THL) | 1-7/16″ |
| Overall Length (OAL) | 100 mm | End Shape | Spiral Point |
| Chamfer | 3.5P-4.5P | Style | Plug |
| Coating | TiCN | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 11017 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
5.00000
Package Width
.70000
Package Height
.65000
Package Weight
0.11
