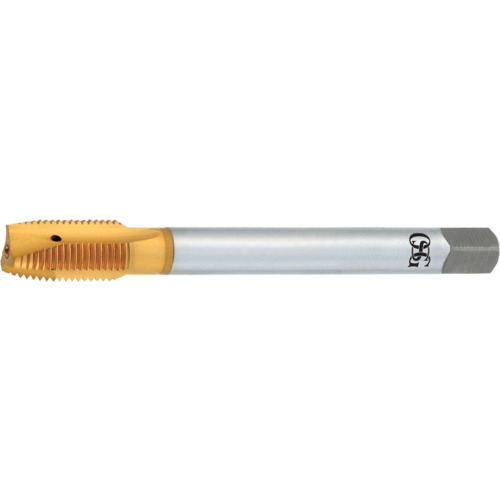

M10x1.25 3FL 6H HSSE Spiral Point Tap - TiN
Spiral Point Tap; M10 × 1.25 mm ; 100 mm OAL ; 3 FL ; HSSCo ; TiN ; 6H ; Series 269
| Thread Standard | Metric | Tool Type | Hand Tap |
| Thread Size | M10 × 1.25 | Special Feature | DIN Length |
| Thread Diameter Size (TDZ) | M10 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Pitch (TP) | 1.25 mm | Connection Diameter Machine Side (DCONMS) | 9.67 mm |
| Thread Tolerance Class (TCTR) | 6H | Thread Cutting Part Length (THL) | 1-1/4″ |
| Usable Length (LU) | 39 mm | End Shape | Spiral Point |
| Overall Length (OAL) | 100 mm | Style | Plug |
| Chamfer | 4P-4.5P | Coolant Supply Property (CSP) | Coolant Thru |
| Coating | TiN | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | 269 |
| Cutting Edge Material | HSSCo |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.45000
Package Width
.60000
Package Height
.55000
Package Weight
0.1
