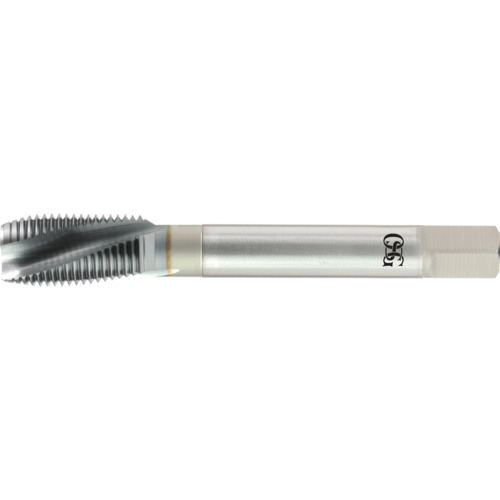

1/4-20 3 Fl H5 VC-10 Spiral Point Tap- V Coating
Spiral Point Tap; 1/4″ - 20 ; 2-1/2″ OAL ; 3 FL ; HSS-PM ; TiCN ; H5 ; Series 13063
| Thread Standard | NC | Cutting Edge Material | HSS-PM |
| Thread Size | 1/4″ - 20 | Tool Type | Spiral Point Tap |
| Thread Diameter Size (TDZ) | 1/4″ | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 20 | Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Thread Tolerance Class (TCTR) | H5 | Thread Cutting Part Length (THL) | 1″ |
| Usable Length (LU) | 0.996″ | End Shape | Spiral Point | Chamfer |
| Overall Length (OAL) | 2-1/2″ | Style | Spiral Point |
| Chamfer | 4P-4.5P | Coolant Supply Property (CSP) | External |
| Coating | TiCN | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 13063 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.35000
Package Weight
0.03
