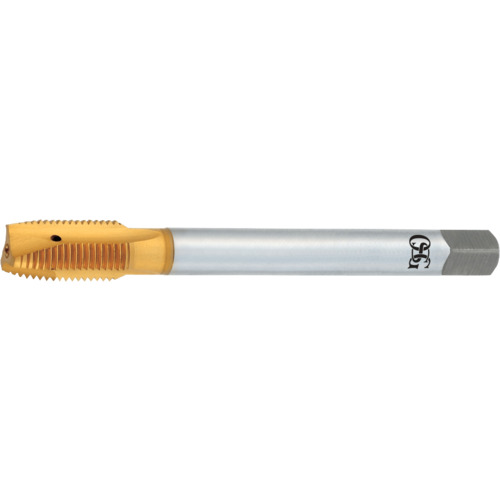

7/16-14 3FL 2B HSSE Spiral Point Tap - TiN
Spiral Point Tap; 7/16″ - 14 ; 100 mm OAL ; 3 FL ; HSSCo ; TiN ; 2B ; Series 260
| Thread Standard | NC | Tool Type | Hand Tap |
| Thread Size | 7/16″ - 14 | Special Feature | DIN Length |
| Thread Diameter Size (TDZ) | 7/16″ | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 14 | Connection Diameter Machine Side (DCONMS) | 0.322″ |
| Thread Tolerance Class (TCTR) | 2B | Thread Cutting Part Length (THL) | 1-7/16″ |
| Usable Length (LU) | 1.291″ | End Shape | Spiral Point |
| Overall Length (OAL) | 100 mm | Style | Plug |
| Chamfer | 4P-4.5P | Coolant Supply Property (CSP) | Coolant Thru |
| Coating | TiN | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 260 |
| Cutting Edge Material | HSSCo |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.90000
Package Width
.80000
Package Height
.65000
Package Weight
0.09
