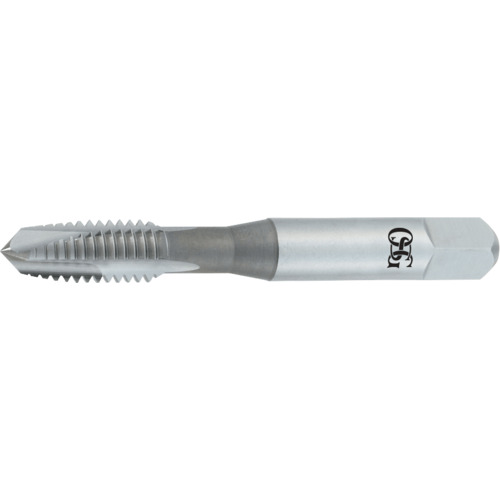

5/16-24 Dia-3B-3 FL-HSS-Bright-Plug Spiral Point Tap
Spiral Point Tap; 5/16″ - 24 ; 2-23/32″ OAL ; 3 FL ; HSS ; Uncoated ; 3B Thread Limit ; Series 288
| Thread Standard | NF | Cutting Edge Material | HSS |
| Thread Size | 5/16″ - 24 | Tool Type | High Performance Tap |
| Thread Diameter Size (TDZ) | 5/16″ | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 24 | Connection Diameter Machine Side (DCONMS) | 0.317″ |
| Thread Tolerance Class (TCTR) | 3B Thread Limit | Thread Cutting Part Length (THL) | 1-1/8″ |
| Usable Length (LU) | 1.122″ | End Shape | Spiral Point |
| Overall Length (OAL) | 2-23/32″ | Style | Plug |
| Chamfer | 4P-4.5P | Measurement Type | Inch |
| Coating | Uncoated | Series/List # | 288 |
| Flute Count (NOF) | 3 |
Product Features
| Remarks | •Seven Taps •Spiral Point Plug Taps •Bright Finish •Designed for tapping aluminum, mild steels and medium carbon steels •Short thread geometry for class 2B & 3B fit •Results in highest fast speed tapping & max tool life | Country of Origin | Mexico |
Shipping Info
Package Length
3.65000
Package Width
.55000
Package Height
.45000
Package Weight
0.05
