1/2-20 H3 3FL HS SP PT

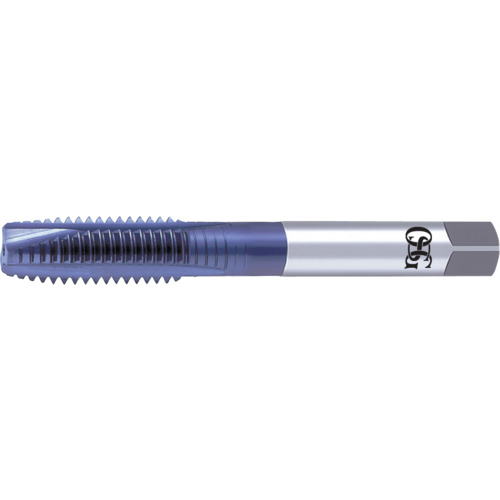

Spiral Point Tap; 1/2″ - 20 ; 3-3/8″ OAL ; 3 FL ; HSS-PM ; TiCN ; H3 ; Series 312TI
| Thread Standard | NF | Cutting Edge Material | HSS-PM |
| Thread Size | 1/2″ - 20 | Tool Type | High Performance Tap |
| Thread Diameter Size (TDZ) | 1/2″ | Applicable Material | | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 20 | Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Thread Tolerance Class (TCTR) | H3 | Thread Cutting Part Length (THL) | 1-21/32″ |
| Usable Length (LU) | 1.354″ | End Shape | Spiral Point |
| Overall Length (OAL) | 3-3/8″ | Style | Plug |
| Chamfer | 4P-4.5P | Measurement Type | Inch |
| Coating | TiCN | Series/List # | 312TI |
| Flute Count (NOF) | 3 |
Product Features
| Remarks | •List 3121Ti-vc, EXOTAP VC–10TI spiral point •High Performance Tap For Titanium Alloys •Available TiCN Finish Only •6Al4V Titanium •Hardened Steel up to 35 HRC | Country of Origin | Mexico |
Shipping Info
Package Length
4.95000
Package Width
.70000
Package Height
.65000
Package Weight
0.12
