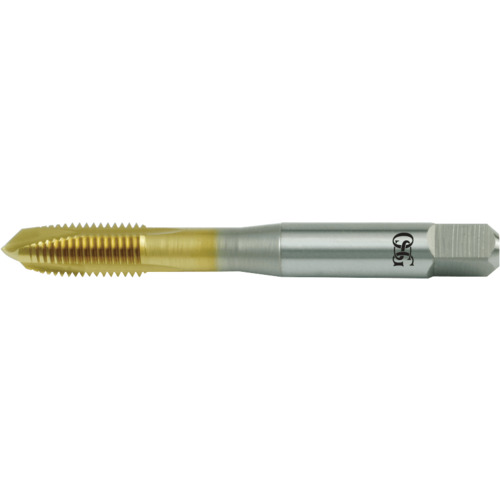

M12 1.25 Dia. - H11-3 FL - HSSE - TiN - Plug - Spiral Point Tap
Spiral Point Tap; M12 × 1.25 mm ; 3-3/8″ OAL ; 3 FL ; HSSCo ; TiN ; H11 ; Series 11115
| Thread Standard | Metric | Cutting Edge Material | HSSCo |
| Thread Size | M12 × 1.25 | Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | M12 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Pitch (TP) | 1.25 mm | Connection Diameter Machine Side (DCONMS) | 9.32 mm |
| Thread Tolerance Class (TCTR) | H11 | Thread Cutting Part Length (THL) | 1-21/32″ |
| Usable Length (LU) | 35 mm | End Shape | Spiral Point |
| Overall Length (OAL) | 3-3/8″ | Style | Plug |
| Chamfer | 4P-4.5P | Measurement Type | Metric |
| Coating | TiN | Series/List # | 11115 |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
4.95000
Package Width
.70000
Package Height
.65000
Package Weight
.1450
