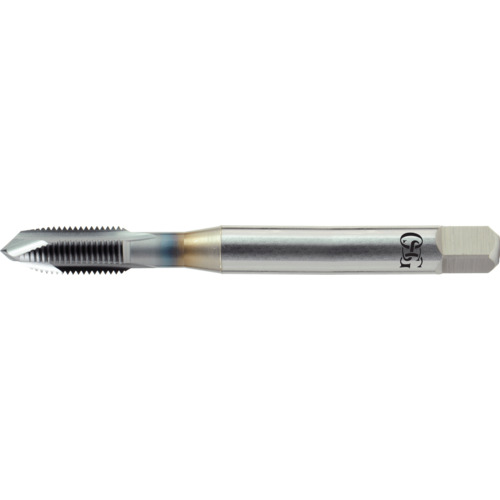

M12X1.75 D6 3FL PLUG DIN TICN SP PT
Spiral Point Tap; M12 × 1.75 mm ; 110 mm OAL ; 3 FL ; HSSCo ; TiCN ; D6 ; Series 11117
| Thread Standard | Metric | Cutting Edge Material | HSSCo |
| Thread Size | M12 × 1.75 | Standard | DIN |
| Thread Diameter Size (TDZ) | M12 | Tool Type | Hand Tap |
| Thread Pitch (TP) | 1.75 mm | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Tolerance Class (TCTR) | D6 | Connection Diameter Machine Side (DCONMS) | 9.32 mm |
| Usable Length (LU) | 32 mm | Thread Cutting Part Length (THL) | 1-21/32″ |
| Overall Length (OAL) | 110 mm | End Shape | Spiral Point |
| Chamfer | 3.5P-4.5P | Style | Plug |
| Coating | TiCN | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | 11117 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
4.95000
Package Width
.70000
Package Height
.65000
Package Weight
0.145
