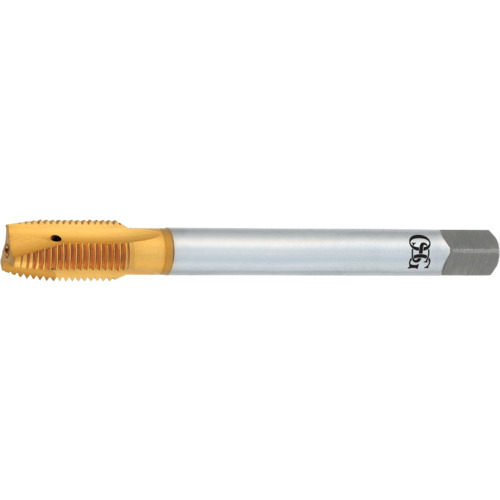

7/8-9 Dia.-2B-3 FL - HSSE - TiN - Plug - Spiral Point Tap
Spiral Point Tap; 7/8″ - 9 ; 140 mm OAL ; 3 FL ; HSSCo ; TiN ; 2B ; Series 260
| Thread Standard | NC | Cutting Edge Material | HSSCo |
| Thread Size | 7/8″ - 9 | Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | 7/8″ | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 9 | Connection Diameter Machine Side (DCONMS) | 0.697″ |
| Thread Tolerance Class (TCTR) | 2B | Thread Cutting Part Length (THL) | 2-7/32″ |
| Usable Length (LU) | 1.885″ | End Shape | Spiral Point |
| Overall Length (OAL) | 140 mm | Style | Plug |
| Chamfer | 4P-4.5P | Measurement Type | Inch |
| Coating | TiN | Series/List # | 260 |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
5.55000
Package Width
1.10000
Package Height
1.00000
Package Weight
.5400
