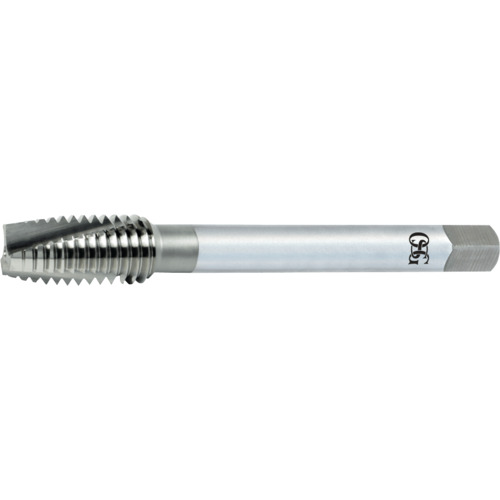

10-32 2Fl H3 HSS Spiral Pointed Tap-Bright
Spiral Point Tap; #10 - 32 ; 2-3/8″ OAL ; 2 FL ; HSS ; Uncoated ; H3 ; Series 105A
| Thread Standard | NF | Cutting Edge Material | HSS |
| Thread Size | #10 - 32 | Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | #10 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 32 | Connection Diameter Machine Side (DCONMS) | 0.194″ |
| Thread Tolerance Class (TCTR) | H3 | Thread Cutting Part Length (THL) | 7/8″ |
| Usable Length (LU) | 0.882″ | End Shape | Spiral Point | Chamfer |
| Overall Length (OAL) | 2-3/8″ | Style | Plug |
| Chamfer | 4P-4.5P | Cutting Direction (HAND) | Right Hand |
| Coating | Uncoated | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 2 | Series/List # | 105A |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.40000
Package Weight
.0150
