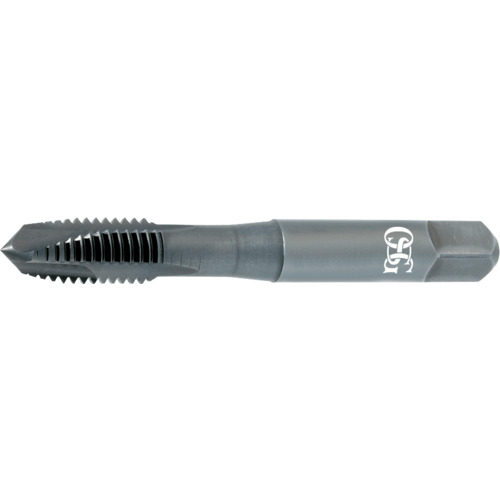

1/4-28 H5 3S/P PLUG VC10
Spiral Point Tap; 1/4″ - 28 ; 2-1/2″ OAL ; 3 FL ; HSS-PM ; TiCN ; H5 ; Series 312
| Thread Standard | NF | Flute Count (NOF) | 3 |
| Thread Size | 1/4″ - 28 | Cutting Edge Material | HSS-PM |
| Thread Diameter Size (TDZ) | 1/4″ | Tool Type | Spiral Point Tap |
| Threads per Inch (TPI) | 28 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Tolerance Class (TCTR) | H5 | Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Usable Length (LU) | 1.003″ | Thread Cutting Part Length (THL) | 1″ |
| Overall Length (OAL) | 2-1/2″ | End Shape | Spiral Point |
| Chamfer | 4P-4.5P | Measurement Type | Inch |
| Coating | TiCN | Series/List # | 312 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.02
