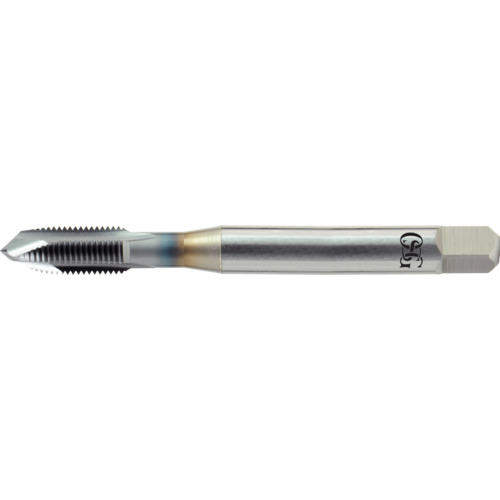

M10X1.5 D6 3FL PLUG DIN
Spiral Point Tap; M10 × 1.5 mm ; 100 mm OAL ; 3 FL ; HSSCo ; TiCN ; D6 ; Series 11117
| Thread Standard | Metric | Cutting Edge Material | HSSCo |
| Thread Size | M10 × 1.5 | Standard | DIN |
| Thread Diameter Size (TDZ) | M10 | Tool Type | Hand Tap |
| Thread Pitch (TP) | 1.5 mm | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Tolerance Class (TCTR) | D6 | Connection Diameter Machine Side (DCONMS) | 9.67 mm |
| Usable Length (LU) | 39 mm | Thread Cutting Part Length (THL) | 1-1/4″ |
| Overall Length (OAL) | 100 mm | End Shape | Spiral Point |
| Chamfer | 3.5P-4.5P | Style | Plug |
| Coating | TiCN | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Series/List # | 11117 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
5.00000
Package Width
.70000
Package Height
.70000
Package Weight
0.12
