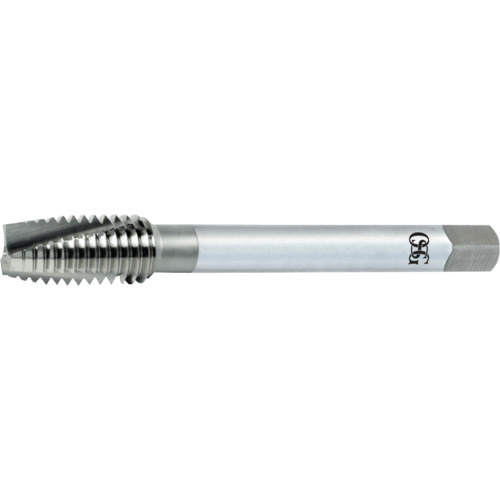

6-32 2Fl H3 HSS Spiral Pointed Tap-Steam Oxide
Spiral Point Tap; #6 - 32 ; 2″ OAL ; 2 FL ; HSS ; Black Oxide ; H3 ; Series 105A
| Thread Standard | NC | Cutting Edge Material | HSS |
| Thread Size | #6 - 32 | Tool Type | Hand Tap |
| Thread Diameter Size (TDZ) | #6 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 32 | Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Thread Tolerance Class (TCTR) | H3 | Thread Cutting Part Length (THL) | 11/16″ |
| Usable Length (LU) | 0.693″ | End Shape | Spiral Point | Chamfer |
| Overall Length (OAL) | 2″ | Style | Plug |
| Chamfer | 4P-4.5P | Cutting Direction (HAND) | Right Hand |
| Coating | Black Oxide | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 2 | Series/List # | 105A |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.35000
Package Weight
.0100
