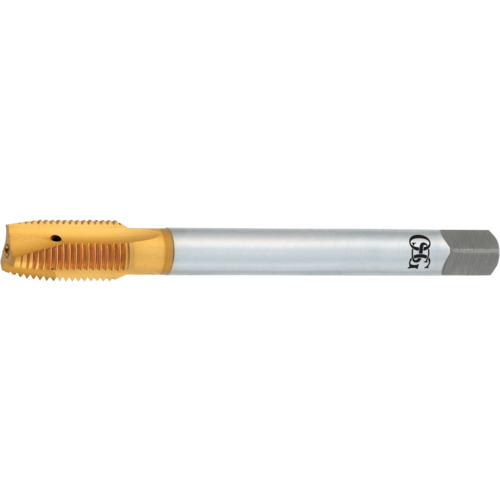

1/4-28 3FL 2B HSSE Spiral Point Tap - TiN
Spiral Point Tap; 1/4″ - 28 ; 80 mm OAL ; 3 FL ; HSSCo ; TiN ; 2B ; Series 260

| Thread Standard | NF | Tool Type | Hand Tap |
| Thread Size | 1/4″ - 28 | Special Feature | DIN Length |
| Thread Diameter Size (TDZ) | 1/4″ | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 28 | Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Thread Tolerance Class (TCTR) | 2B | Thread Cutting Part Length (THL) | 1″ |
| Usable Length (LU) | 1.181″ | End Shape | Spiral Point |
| Overall Length (OAL) | 80 mm | Style | Plug |
| Chamfer | 4P-4.5P | Coolant Supply Property (CSP) | Coolant Thru |
| Coating | TiN | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Series/List # | 260 |
| Cutting Edge Material | HSSCo |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.50000
Package Width
.40000
Package Height
.35000
Package Weight
0.03
