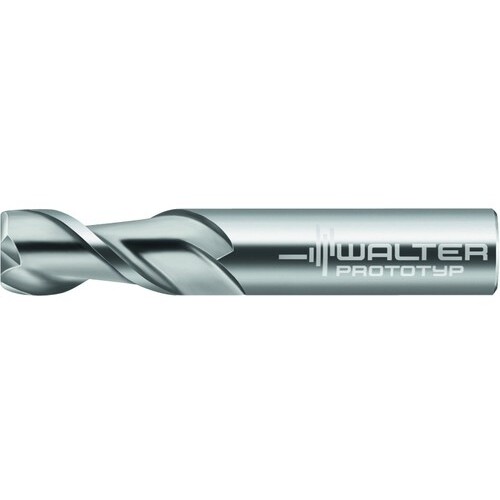

5mm Dia. × 10mm OAL 2 Flute Carbide 45° Helix End
SQ End Mill; 5 mm Dia. × 10 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 2 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 5 mm | Coating | Uncoated |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 10 mm | Flute Helix Angle (FHA) | CW|45 Degrees |
| Overall Length (OAL) | 57 mm | Shank Type | Round |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.1969″ |
Product Features
| Family Description | H602511–5 | Country of Origin | Germany |
Shipping Info
Package Weight
0.055
