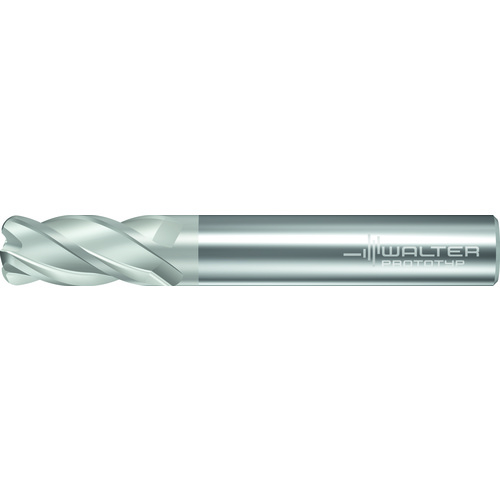

10mm Dia. × 22mm LOC 4 Flute CarbideTAA 35/38° Hel
SQ End Mill; 10 mm Dia. × 22 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 3 mm RE ; 4 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 10 mm | Flute Count (NOF) | 4 |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Flute Helix Angle (FHA) | CW|38 Degrees |
| Depth of Cut Maximum (APMX) | 22 mm | Shank Type | Round |
| Overall Length (OAL) | 72 mm | End Shape | Corner Radius |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 3 mm |
| Coating | AlTiN | Decimal Equivalent | 0.3937″ |
Product Features
| Family Description | H2038217–10–3 | Country of Origin | Germany |
Shipping Info
Package Weight
0.17
