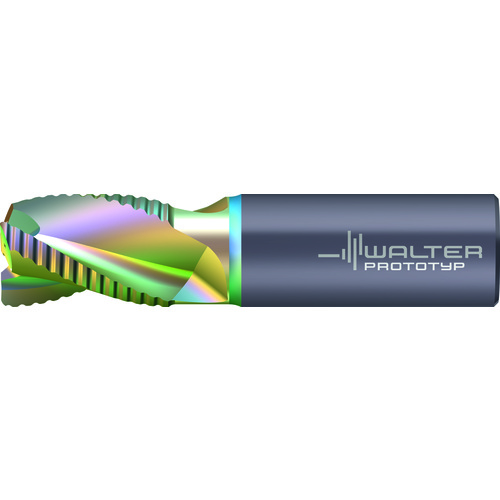

25mm Dia. × 37mm LOC 3 Flute Carbide TiALN+CrN Coo
SQ End Mill; 25 mm Dia. × 37 mm LOC × 25 mm Shank Dia. × 110 mm OAL ; 2 mm RE ; 3 FL ; Carbide ; | TiAlN | ZrN |
| Cutting Diameter (DC) | 25 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 25 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 37 mm | Usable Length (LU) | 52 mm |
| Overall Length (OAL) | 110 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 2 mm |
| Coating | | TiAlN | ZrN | | Flute Type | For Aluminum |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Helix Angle (FHA) | CW|30 Degrees | Decimal Equivalent | 0.9843″ |
Product Features
| Family Description | MB265–25.0A3X200C WJ30CA | Country of Origin | Germany |
Shipping Info
Package Weight
1.42
