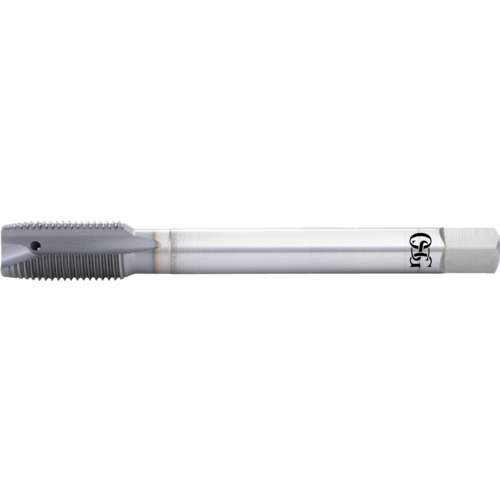

9/16-18 UNF H5 3FL SP PT TAP
Spiral Point Tap; 9/16″ - 18 ; 3.93″ OAL ; 3 FL ; HSS-PM ; Vanadium ; H5 ; Series 16555
| Thread Standard | UNF | Cutting Edge Material | HSS-PM |
| Thread Size | 9/16″ - 18 | Tool Type | Spiral Point Tap |
| Thread Diameter Size (TDZ) | 9/16″ | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 18 | Connection Diameter Machine Side (DCONMS) | 0.429″ |
| Thread Tolerance Class (TCTR) | H5 | Thread Cutting Part Length (THL) | 1″ |
| Usable Length (LU) | 1.472″ | End Shape | Spiral Point |
| Overall Length (OAL) | 3.93″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | 3.5P-4.5P | Measurement Type | Inch |
| Coating | Vanadium | Series/List # | 16555 |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
5.05000
Package Width
.90000
Package Height
.85000
Package Weight
0.165
