1/2-13 UNC H5 3FL SP PT

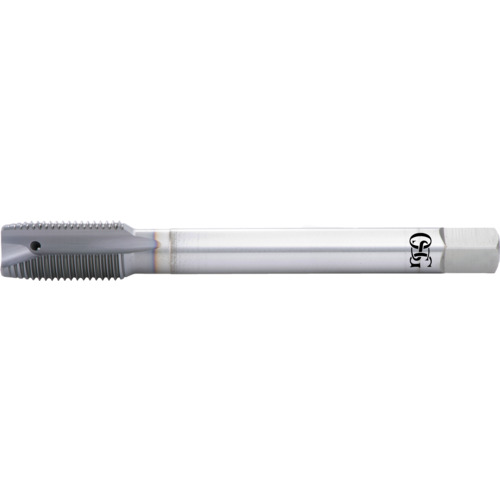

Spiral Point Tap; 1/2″ - 13 ; 4.33″ OAL ; 3 FL ; HSS-PM ; Vanadium ; H5 ; Series 16555
| Thread Standard | NC | Cutting Edge Material | HSS-PM |
| Thread Size | 1/2″ - 13 | Tool Type | Spiral Point Tap |
| Thread Diameter Size (TDZ) | 1/2″ | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 13 | Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Thread Tolerance Class (TCTR) | H5 | Thread Cutting Part Length (THL) | 0.921″ |
| Usable Length (LU) | 1.354″ | End Shape | Spiral Point |
| Overall Length (OAL) | 4.33″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | 3.5P-4.5P | Measurement Type | Inch |
| Coating | Vanadium | Series/List # | 16555 |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.95000
Package Width
.70000
Package Height
.65000
Package Weight
0.13
