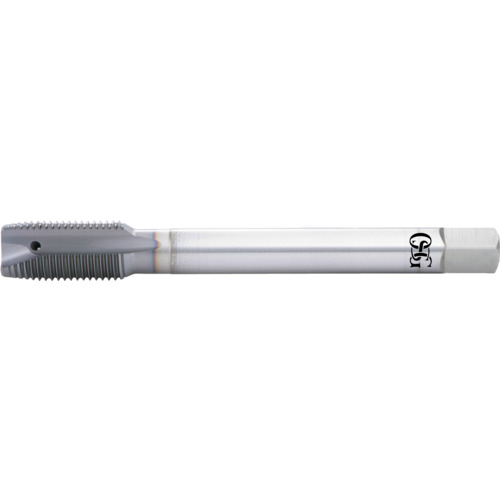

5/16-18 UNC H5 3FL SP PT
Spiral Point Tap; 5/16″ - 18 ; 3.54″ OAL ; 3 FL ; HSS-PM ; Vanadium ; H5 ; Series 16555
| Thread Standard | UNC | Cutting Edge Material | HSS-PM |
| Thread Size | 5/16″ - 18 | Tool Type | Spiral Point Tap |
| Thread Diameter Size (TDZ) | 5/16″ | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 18 | Connection Diameter Machine Side (DCONMS) | 0.317″ |
| Thread Tolerance Class (TCTR) | H5 | Thread Cutting Part Length (THL) | 0.665″ |
| Usable Length (LU) | 1.377″ | End Shape | Spiral Point |
| Overall Length (OAL) | 3.54″ | Cutting Direction (HAND) | Right Hand |
| Chamfer | 3.5P-4.5P | Measurement Type | Inch |
| Coating | Vanadium | Series/List # | 16555 |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.40000
Package Width
.45000
Package Height
.45000
Package Weight
0.055
