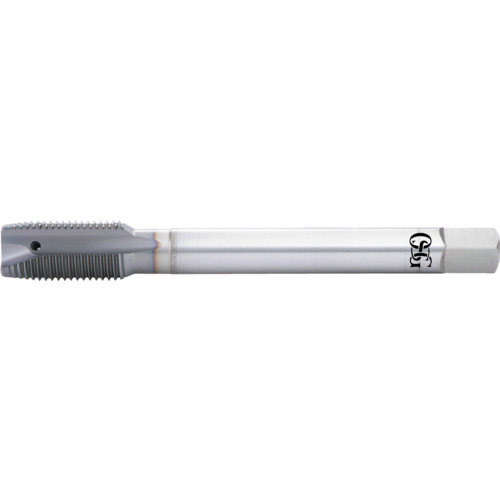

M24X2.0 D7 4FL SP PT TAP
Spiral Point Tap; M24 × 2 mm ; 140 mm OAL ; 4 FL ; HSS-PM ; Vanadium ; D7 ; Series 16550
| Thread Standard | Metric | Cutting Edge Material | HSS-PM |
| Thread Size | M24 × 2 | Tool Type | Spiral Point Tap |
| Thread Diameter Size (TDZ) | M24 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Pitch (TP) | 2 mm | Connection Diameter Machine Side (DCONMS) | 19.3 mm |
| Thread Tolerance Class (TCTR) | D7 | Thread Cutting Part Length (THL) | 36 mm |
| Usable Length (LU) | 51 mm | End Shape | Spiral Point |
| Overall Length (OAL) | 140 mm | Cutting Direction (HAND) | Right Hand |
| Chamfer | 2P-3P | Measurement Type | Metric |
| Coating | Vanadium | Series/List # | 16550 |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
5.65000
Package Width
2.15000
Package Height
1.20000
Package Weight
.6700
