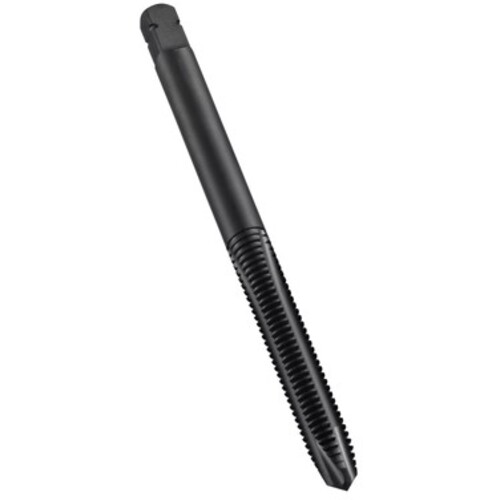

1-14 3 Flute 3B HSS-E UNF Machine Tap Spiral Point E-code # E0361-14
Spiral Point Tap; 1″ - 14 ; 3 FL ; HSSE ; Black Oxide ; 3B ; Series E036
Additional Tariff Surcharge of 8 %
| Thread Standard | UNF | Tool Type | Machine Tap |
| Thread Size | 1″ - 14 | Applicable Material | | Steel | Cast Iron | Hard Materials | |
| Thread Diameter Size (TDZ) | 1″ | Connection Diameter Machine Side (DCONMS) | 0.8″ |
| Threads per Inch (TPI) | 14 | End Shape | Spiral Point |
| Thread Tolerance Class (TCTR) | 3B | Style | Plug |
| Chamfer | 3.5P-5P | Cutting Direction (HAND) | Right Hand |
| Coating | Black Oxide | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 3 | Length Group | 2.5xD |
| Cutting Edge Material | HSSE | Measurement Type | Inch |
| Standard | ANSI | Series/List # | E036 |
Product Features
| Family Description | E-code # E0361-14 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.21
