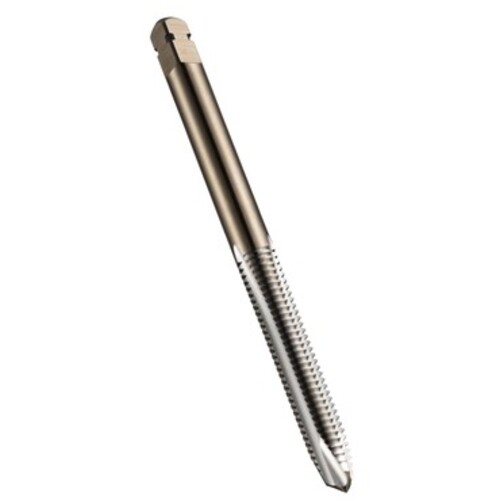

3/8-24 2 Flute 3B HSS-E UNF Machine Tap Spiral Point E-code # E0353/8
Spiral Point Tap; 3/8″ - 24 ; 2 FL ; HSSE ; Uncoated ; 3B ; Series E035
Additional Tariff Surcharge of 8 %
| Thread Standard | UNF | Applicable Material | | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Thread Size | 3/8″ - 24 | Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Thread Diameter Size (TDZ) | 3/8″ | Tapping Prehole Diameter (Pre-hole) | Q |
| Threads per Inch (TPI) | 24 | End Shape | Spiral Point |
| Thread Tolerance Class (TCTR) | 3B | Style | Plug |
| Chamfer | 3.5P-5P | Cutting Direction (HAND) | Right Hand |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Length Group | 2.5xD |
| Cutting Edge Material | HSSE | Measurement Type | Inch |
| Standard | ANSI | Series/List # | E035 |
| Tool Type | Machine Tap |
Product Features
| Family Description | E-code # E0353/8 | Country of Origin | Brazil |
Shipping Info
Package Weight
0.086
