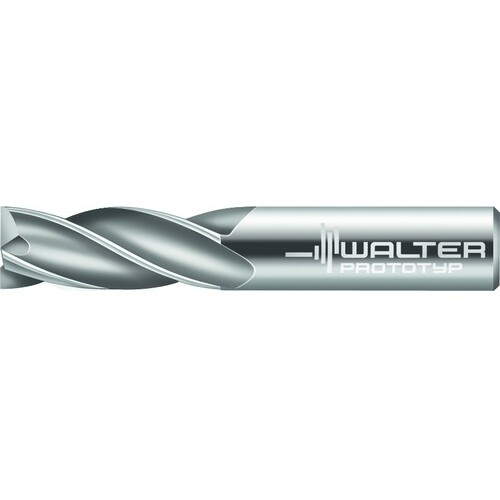

14mm Dia. × 26mm LOC 4 Flute Carbide 30° Helix End
SQ End Mill; 14 mm Dia. × 26 mm LOC × 14 mm Shank Dia. × 83 mm OAL ; 4 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 14 mm | Coating | Uncoated |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 26 mm | Flute Helix Angle (FHA) | CW|30 Degrees |
| Overall Length (OAL) | 83 mm | Shank Type | Round |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5512″ |
Product Features
| Family Description | H302211–14 | Country of Origin | Germany |
Shipping Info
Package Weight
0.364
