1/4-20 2B STI SP PT

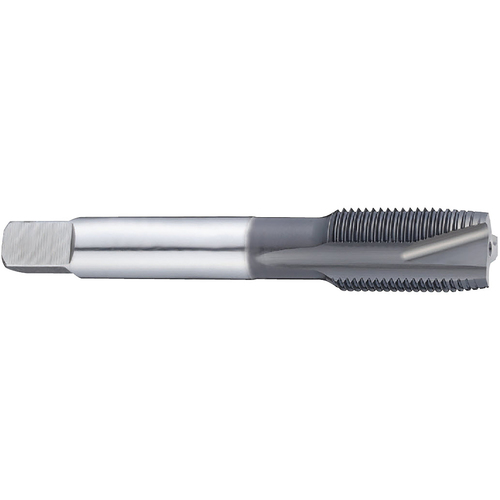

Spiral Point Tap; 1/4″ - 20 ; 2.72″ OAL ; 3 FL ; HSSE-V3 ; Hardslick ; 2B
| Tool Type | STI Tap | Coating | HL |
| Thread Diameter Size (TDZ) | 1/4″ | Coolant Supply Property (CSP) | External |
| Thread Tolerance Class (TCTR) | 2B | Shank Type | Square |
| Thread Standard | UNC | Flute Type | Spiral Point |
| Thread Cutting Part Length (THL) | 0.669″ | Usable Length (LU) | 1.13″ |
| Threads per Inch (TPI) | 32 | Measurement Type | Inch |
| Overall Length (OAL) | 2.72″ | Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Cutting Edge Material | HSSE | Standard | 322 |
| End Shape | Plug | Length Group | 3xD |
| Flute Count (NOF) | 3 | Series/List # | SI |
| Chamfer | 4P-5P | Thread Size | 1/4″ - 32 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
3.75
Package Width
0.625
Package Height
0.5
Package Weight
0
