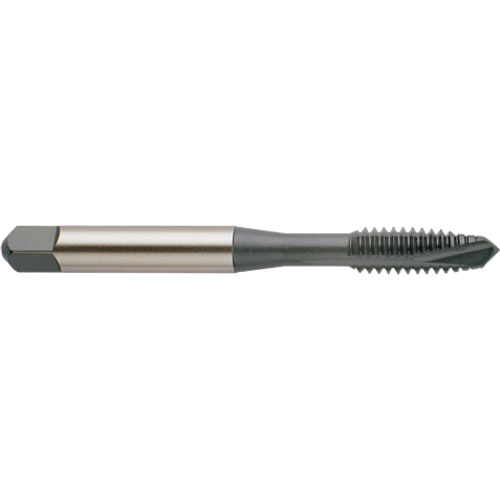

Spiral Point Tap; M16 × 2 mm ; 96.77 mm OAL ; 3 FL ; HSSE-V3 ; Steam Oxide ; D7 ; Series O9
Spiral Point Tap; M16 × 2 mm ; 96.77 mm OAL ; 3 FL ; HSSE-V3 ; Black Oxide ; D7 ; Series O9
| Thread Standard | M | Standard | 302A |
| Thread Size | M16 × 2 mm | Tool Type | Spiral Point Tap |
| Thread Diameter Size (TDZ) | M16 | Connection Diameter Machine Side (DCONMS) | 12.19 mm |
| Thread Pitch (TP) | 2 mm | Thread Cutting Part Length (THL) | 27.51 mm |
| Thread Tolerance Class (TCTR) | D7 | Tapping Prehole Diameter (Pre-hole) | 14.181 mm |
| Usable Length (LU) | 46 mm | End Shape | Plug |
| Overall Length (OAL) | 96.77 mm | Shank Type | Square |
| Chamfer | 4P-5P | Length Group | 3xD |
| Coating | Black Oxide | Square Size | 9.14 mm |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSSE-V3 | Series/List # | O9 |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4
Package Width
0.875
Package Height
0.875
Package Weight
0.201
