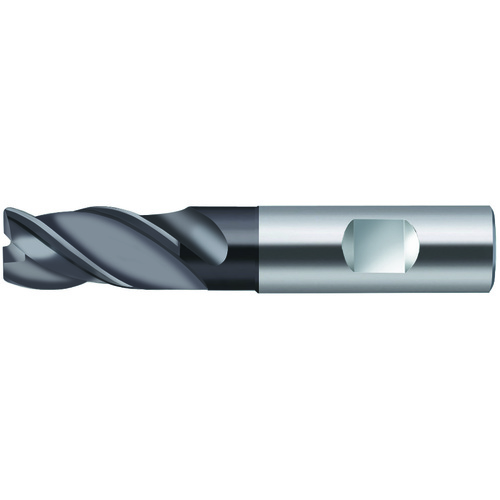

10mm Dia. × 19mm OAL 3 Flute Carbide TAX 45° Helix
SQ End Mill; 10 mm Dia. × 30 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 1.5 mm RE ; 3 FL ; 30 mm LBS ; Carbide ; AlTiN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 10 mm | Flute Helix Angle (FHA) | CW|45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 30 mm | End Shape | Corner Radius |
| Overall Length (OAL) | 72 mm | Usable Length (LU) | 30 mm |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 1.5 mm |
| Coating | AlTiN | Decimal Equivalent | 0.3937″ |
| Flute Count (NOF) | 3 |
Product Features
| Family Description | H4129318–10 | Country of Origin | Germany |
Shipping Info
Package Weight
0.17
