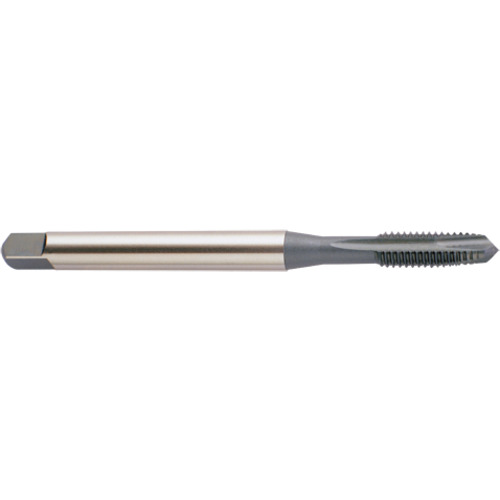

Spiral Point Tap; M7 × 1 mm ; 89.99 mm OAL ; 3 FL ; HSSE-V3 ; Oxide ; D5 ; Series J9
| Thread Standard | M | Standard | DIN/ANSI |
| Thread Size | M7 × 1 mm | Tool Type | Spiral Point Tap |
| Thread Diameter Size (TDZ) | M7 | Connection Diameter Machine Side (DCONMS) | 8.08 mm |
| Thread Pitch (TP) | 1 mm | Thread Cutting Part Length (THL) | 16.99 mm |
| Thread Tolerance Class (TCTR) | D5 | Tapping Prehole Diameter (Pre-hole) | 6.091 mm |
| Usable Length (LU) | 28.6 mm | End Shape | Plug |
| Overall Length (OAL) | 89.99 mm | Shank Type | Square |
| Chamfer | 4P-5P | Length Group | 3xD |
| Coating | Oxide | Square Size | 8.08 mm |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Cutting Edge Material | HSSE-V3 | Series/List # | J9 |
Product Features
| Country of Origin | KR |
Shipping Info
Package Length
4.625
Package Width
0.625
Package Height
0.5
Package Weight
0.06095
