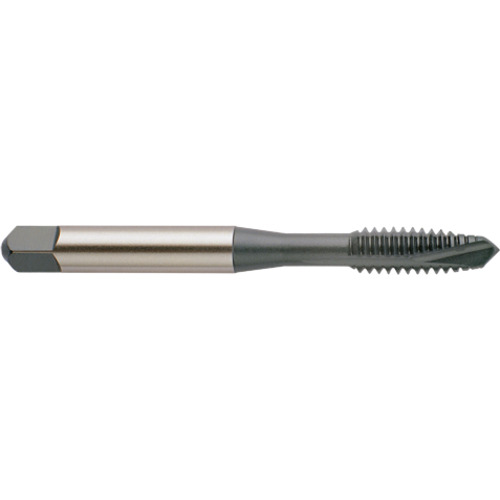

Spiral Point Tap; 5/8″ - 11 ; 3.81″ OAL ; 4 FL ; P-HSS ; Hardslick ; H3 ; Series J6
Spiral Point Tap; 5/8″ - 11 ; 3.81″ OAL ; 4 FL ; HSS ; HL ; H3 ; Series J6
| Thread Standard | UNC | Tool Type | Spiral Point Tap |
| Thread Size | 5/8″ - 11 | Connection Diameter Machine Side (DCONMS) | 0.48″ |
| Thread Diameter Size (TDZ) | 5/8″ | Thread Cutting Part Length (THL) | 1.083″ |
| Threads per Inch (TPI) | 11 | Tapping Prehole Diameter (Pre-hole) | 0.5423″ |
| Thread Tolerance Class (TCTR) | H3 | End Shape | Plug |
| Usable Length (LU) | 1.811″ | Shank Type | Square |
| Overall Length (OAL) | 3.81″ | Coolant Supply Property (CSP) | External |
| Chamfer | 4P-5P | Length Group | 3xD |
| Coating | HL | Square Size | 0.36″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | J6 |
| Standard | 302A |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4.125
Package Width
0.875
Package Height
0.875
Package Weight
0.198
