12mm Dia. × 26mm LOC 4 Flute Carbide TAX .05mm CR

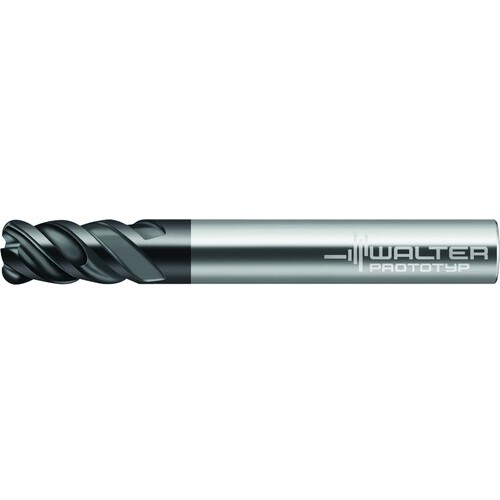

SQ End Mill; 12 mm Dia. × 26 mm LOC × 12 mm Shank Dia. × 83 mm OAL ; 0.5 mm RE ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 12 mm | Flute Helix Angle (FHA) | CW|50 Degrees |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 26 mm | End Shape | Corner Radius |
| Overall Length (OAL) | 83 mm | Corner Radius (RE) | 0.5 mm |
| Cutting Edge Material | Carbide | Tool Type | Non-Center Cutting |
| Coating | AlTiN | Decimal Equivalent | 0.4724″ |
| Flute Count (NOF) | 4 |
Product Features
| Family Description | H3070318–12–0.5 | Country of Origin | Germany |
Shipping Info
Package Weight
0.29
