M18 × 1.5 D6 3S/P PLUG VC10TI TICN

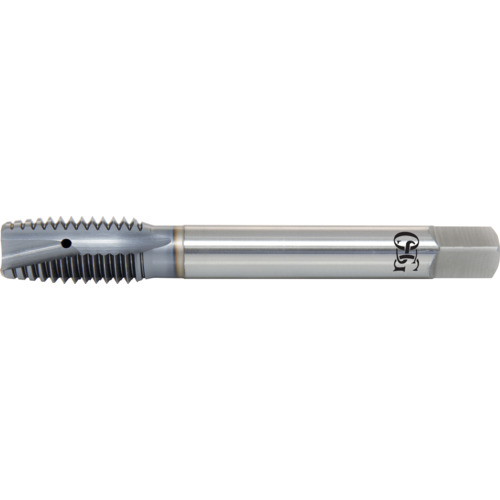

Spiral Point Tap; M18 × 1.5 mm ; 110 mm OAL ; 3 FL ; HSS-PM ; Vanadium ; D6 ; Series 347TI
| Thread Standard | Metric | Cutting Edge Material | HSS-PM |
| Thread Size | M18 × 1.5 | Tool Type | High Performance Tap |
| Thread Diameter Size (TDZ) | M18 | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Pitch (TP) | 1.5 mm | Connection Diameter Machine Side (DCONMS) | 13.76 mm |
| Thread Tolerance Class (TCTR) | D6 | Thread Cutting Part Length (THL) | 30 mm |
| Usable Length (LU) | 43 mm | Style | Plug |
| Overall Length (OAL) | 110 mm | Cutting Direction (HAND) | Right Hand |
| Chamfer | 4.5P-5.5P | Measurement Type | Metric |
| Coating | Vanadium | Series/List # | 347TI |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.40000
Package Width
.95000
Package Height
.80000
Package Weight
.2850
