20mm Dia. × 38mm LOC 4 Flute Carbide TAX .05mm CR

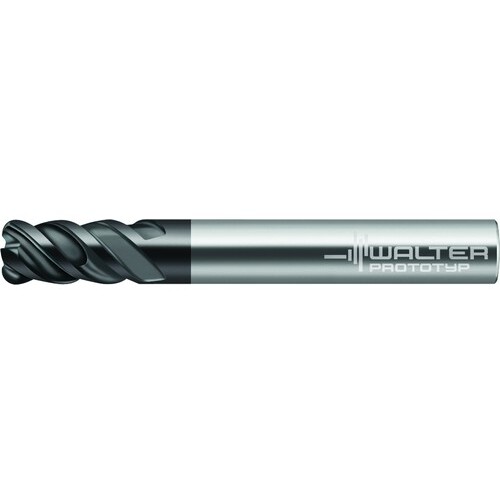

SQ End Mill; 20 mm Dia. × 38 mm LOC × 20 mm Shank Dia. × 104 mm OAL ; 0.5 mm RE ; 4 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 20 mm | Flute Helix Angle (FHA) | CW|50 Degrees |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 38 mm | End Shape | Corner Radius |
| Overall Length (OAL) | 104 mm | Corner Radius (RE) | 0.5 mm |
| Cutting Edge Material | Carbide | Tool Type | Non-Center Cutting |
| Coating | AlTiN | Decimal Equivalent | 0.7874″ |
| Flute Count (NOF) | 4 |
Product Features
| Family Description | H3070318–20–0.5 | Country of Origin | Germany |
Shipping Info
Package Weight
0.967
